1. Centre wheel bearing, main plate

1

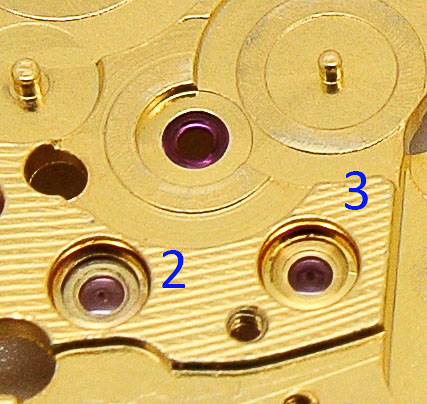

2, 3.  Escape and third wheel bearings, main plate

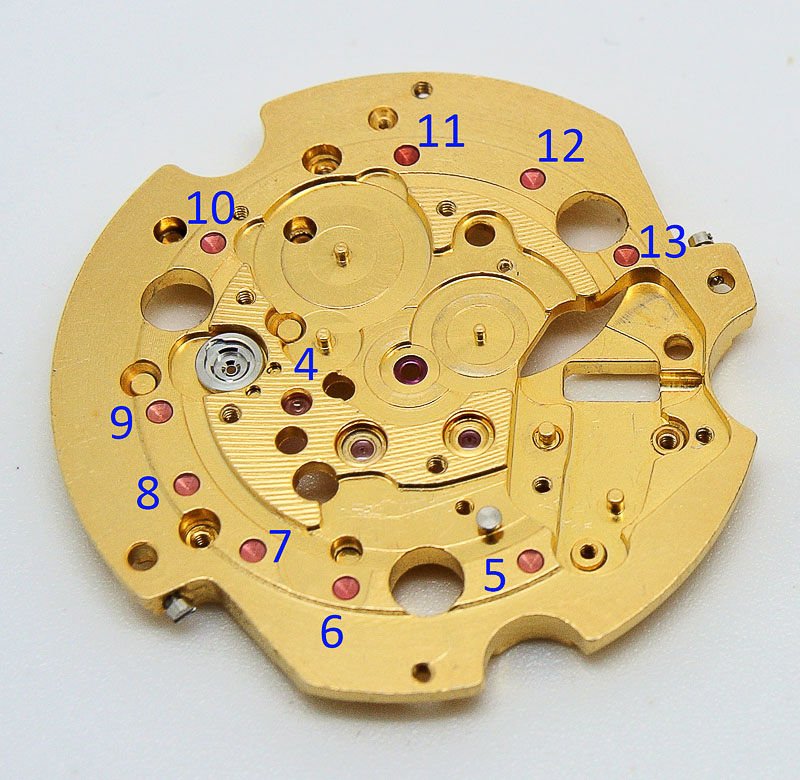

2 and 34 to 13. Pallet fork bearing (4, main plate) and date wheel channel (5 to 13)

4 to 13

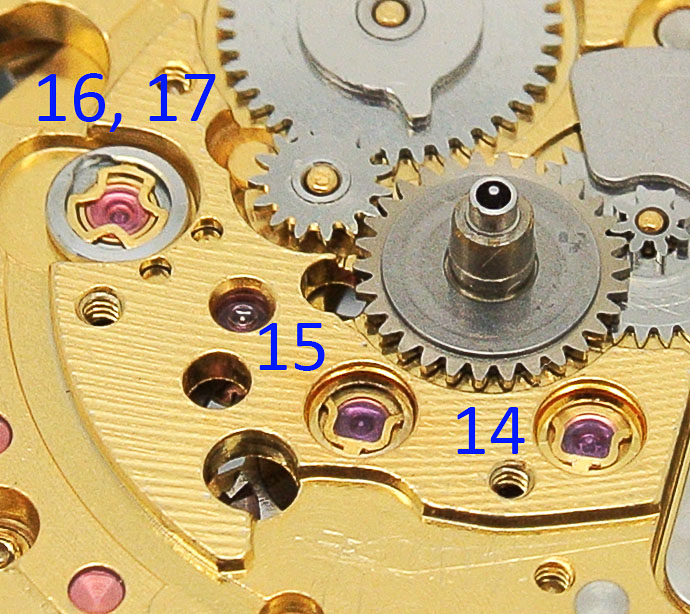

14 to 17. Third and escape wheel diafix cap jewels and lower balance diashock setting

14 to 17

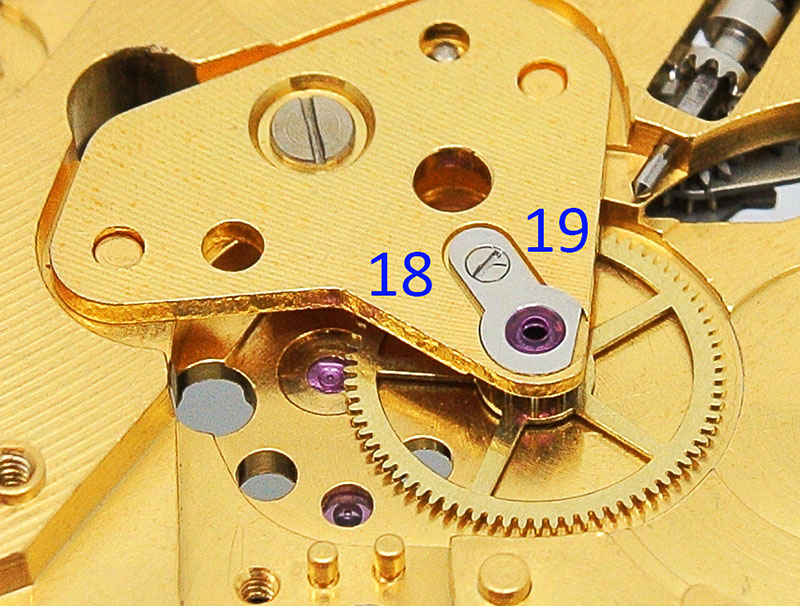

18, 19. Centre wheel bridge and bearing plate

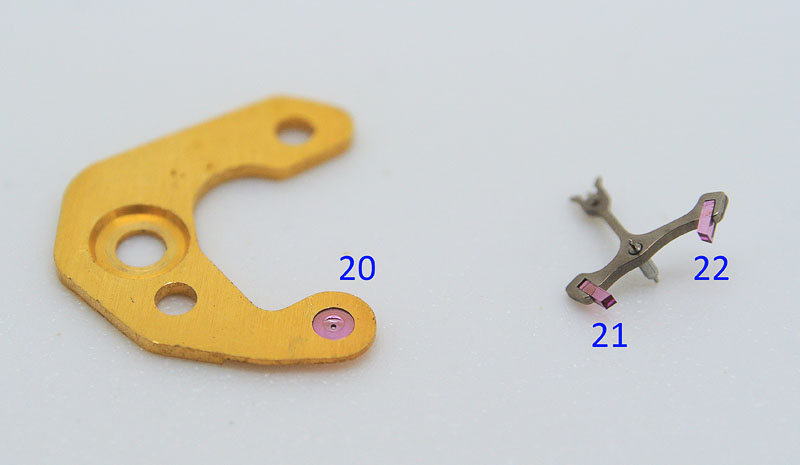

18 and 1920 to 22.  Pallet cock and pallet jewels

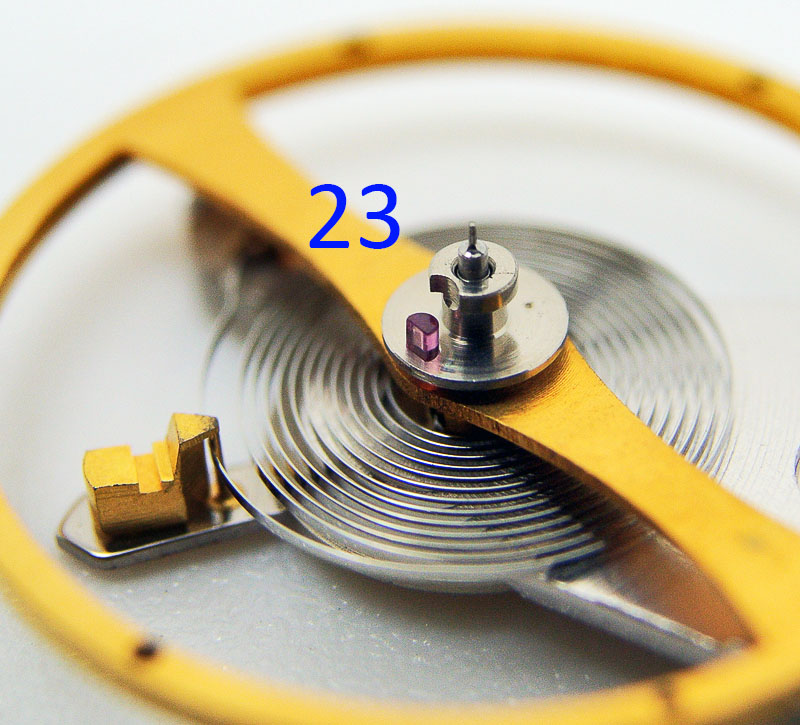

20 to 22 23.  Impulse jewel

23

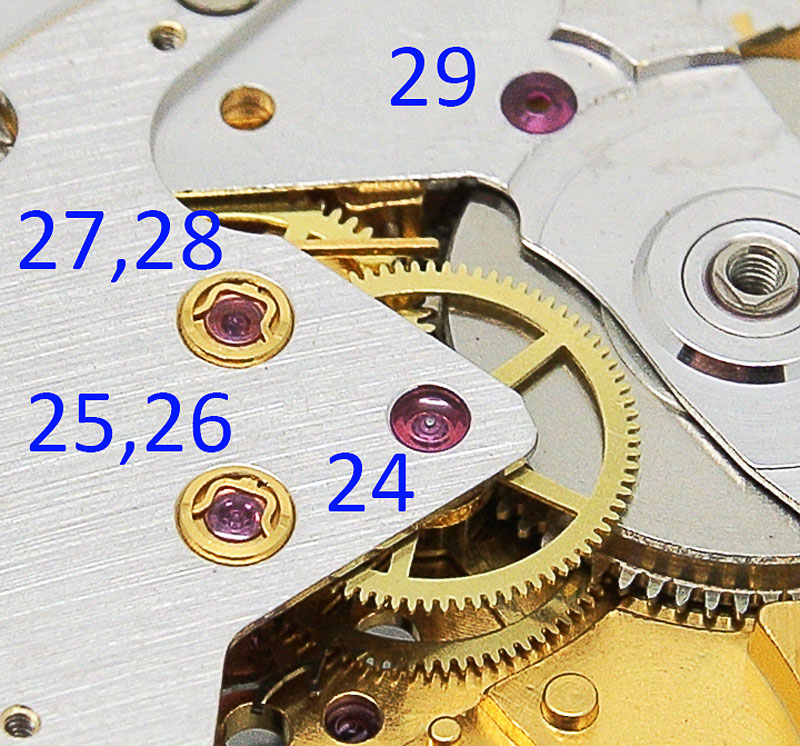

24 to 29.  Centre wheel, diafix settings, transmission wheel pivot (train wheel and barrel bridge)

24 to 29

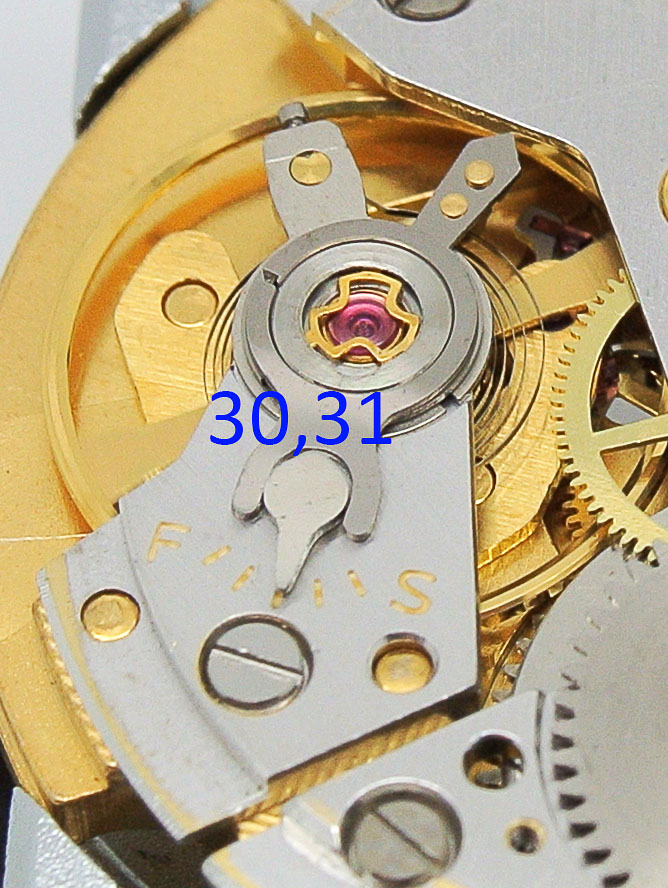

30, 31.  Balance wheel diashock setting

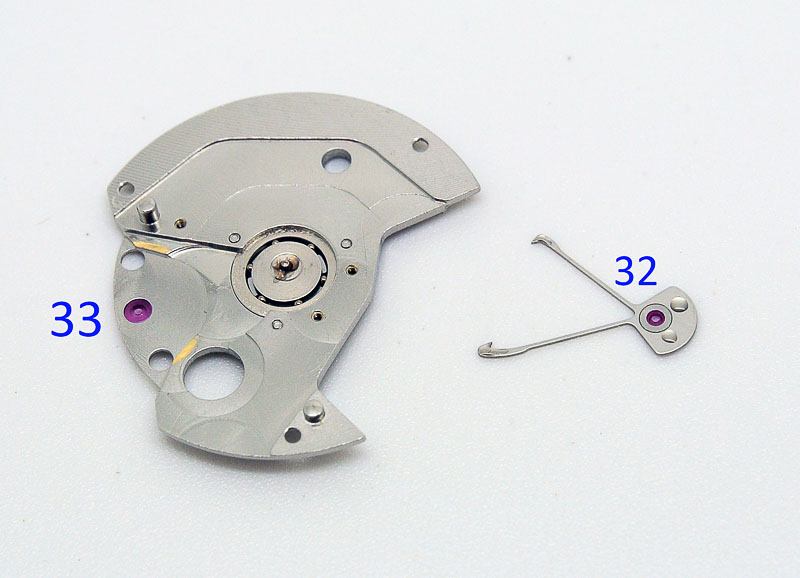

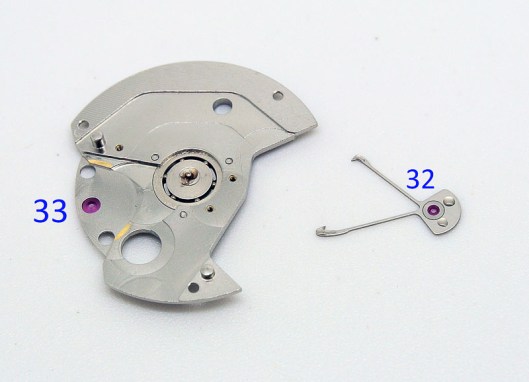

30,3132, 33.  Autowinder pawl lever and transmission wheel

32 and 33

The story of the sum of the parts can be found here.
