A few years ago, I came across a picture of a rather lovely, but unlikely Omega dress watch, combining a dress case with the dial and handset from a Seamaster 300. Such creations are commonly referred to as Frankenwatches, but in spite of its dubious origins, I rather liked it:

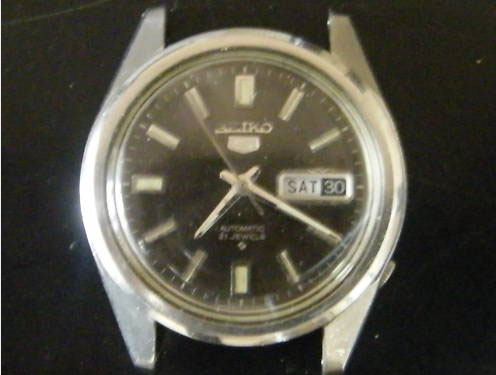

Some time later, I happened upon a Seiko 6119-8080 dress watch, bought mainly for the dial which I thought might go well in another project:
(Photo: Ebay seller, long forgotten)
As it turned out, the dial was ruined and unusable but the germ of an idea had started to form that perhaps the case might form the basis of a little project to get some small way towards the imaginary Omega. A 6309 fit PO dial from Hong Kong (Yobokies) and a set of steel MOD hands (motorcitywatchworks) and we were potentially in business. I also bought a black day wheel from a watch maker in Australia because I thought black on white would distract too much from the look I was after (you notice my obsession with having a date still over-rides other aesthetic considerations).
The movement fitted to the 6119-8080 is the B variant of the 6119 which has a date quickset, achieved by pushing in the crown but no day quickset. Additionally, it comes only with a single language day wheel which means that my black day wheel from Oz would be incompatible. By the time I discovered this, I was already well advanced into the servicing of the movement, which held some other, rather unpleasant surprises. I had heard from others that it is not uncommon for unscrupulous sellers/watchmakers, to ‘service’ a movement by dunking it in watch oil. When I stripped down mine, I discovered that it was swimming in oil. Here is the back of the day wheel:

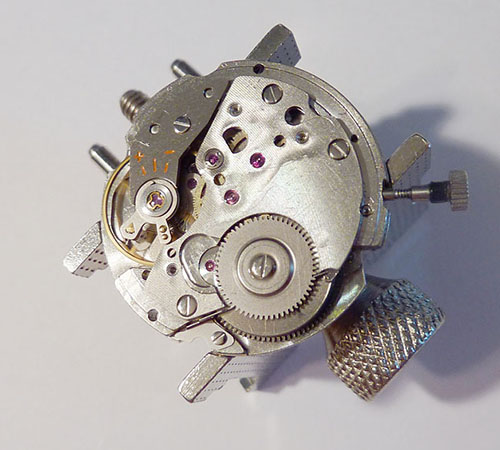

and the top of the movement with the autowinding mechanism removed:

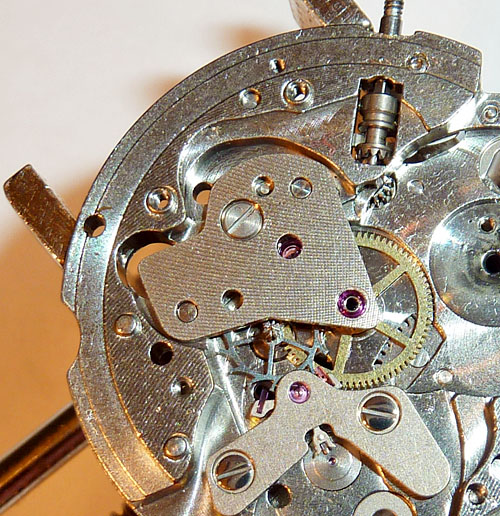

I ended up cleaning, oiling and rebuilding this one, but the day wheel problem meant that I would not be using it for this project. Happily I had a 6106C from another watch knocking about. This one did not work but looked in decent nick and probably just needed a service. So a strip down, clean and oil followed, including both diashock jewels, and a refit with the date wheel from the 6119B and the 6309 black English/Roman day wheel. One other key difference between the two movements is that the 6106 hacks. Here is a comparison of the centre wheel bridge on the 6119B with no hack lever, or indeed option to install one:
with that on the 6106C
Notice the presence of the hacking level on the latter and the small but important differences in the machining of the main plates.

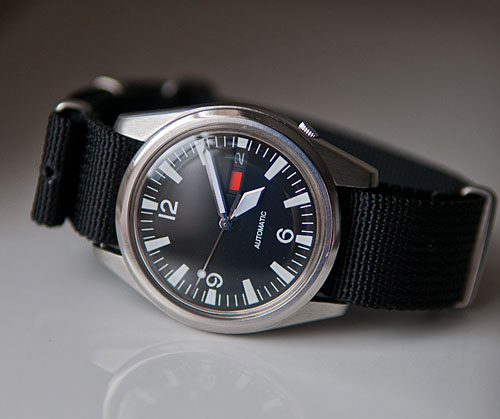

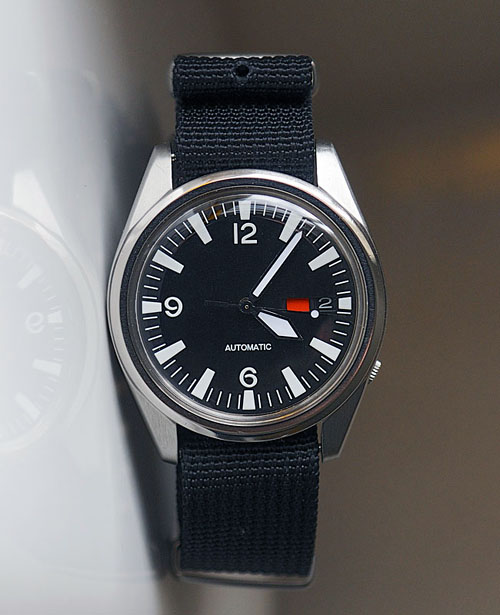

The rest all came together without the any drama. On with the PO dial, the hands from Detroit, plus a new old stock, domed Seiko acrylic crystal and we have a rather loose approximation to that old fraudulent Omega:
Great posts, I enjoy it a lot. It’s therapeutic to me just reading your posts. I’m wondering if you could post some notes how you install the domed Seiko acrylic crystal. much appreciated.
Thank you. The original case was designed to accept tension ring equipped acrylic crystals and so all I had to do was source the correct replacement, and press it into place with my crystal press. If you hunt out the ‘Unidentified Flying Belle’ post, you will see a photo of the press in action.
Lord Dunsany said:
Great work. I have this pesky 61890 (6201-8980) NOS case that I’m trying to fit a movement into. Needless to say 6201s are hard to find, and I don’t really know if something like a readily available 6119 would fit. Any opinions?
The 6201 is just a 6205 without the calendar function and so any 62 series movement should fit. 6205’s are aplenty and can be had cheaply.
Richard Maher. said:
Thanks for your informative rebuilds on the Seiko 5 (6119 80830) watch. I have just received one and I’m interested in the bands you have refitted to your examples.
This one just a black NATO strap bought from Timefactors in the UK.
Tommy Kidd said:
Love the read well written and informative!
I’m looking for a crystal as well as a gasket and possibly a dial for a 1960s Omega Seamaster Deville case# 14765 Any information is appreciated!!!!!Possibly some schematics and specs?
Cousins UK suggests one of PX5072, PY5071 or PZ5072 depending on the colour of the tension ring. X = gold, Y = pink gold, Z = steel.
Tommy Kidd said:
Sadly I’m guessing because I’m in the US it show it not available to me.(not the exact wording) none the less still unavailable from cousins
I didn’t look at availability earlier – I was just looking for the part number. These are restricted parts which means only available to officially-approved Omega repairers. You could try searching elsewhere for the part number and see if there are other potential sources or indeed check to see if there are third party alternatives.
Tommy Kidd said:
Thank you for the information! Any other is appreciated as well!!! Loving this community so far!
