Hot-rod verb \ˈhät-ˌrä-d\
To modify an engine to achieve higher performance
In common with many watch companies of the 1960’s and 70’s, Seiko fitted closely related versions of the same movement to a diverse selection of very different watches. The Seikomatic watches featured in recent posts here and here were powered by variants of the 62 series movements, all of which trace their lineage back to the 603 calibre which first appeared in 1960. In the dressier models, the movements were frequently gilted and well-endowed in their jewel count: upper-mid tier watches with aspirations to upwards mobility. Higher end variants of the 62 series movements found their way into sub-chronometer spec 6218 Seikomatics and chronometer spec watches such as the 39 jewel Seikomatic 6216-9000. One step further up the pecking order sat the first automatic Grand Seikos fitted with 35 and 39 jewel 6245 and 6246 chronometer movements.
The working man, however, needed something more down to earth, less ostentatious – something built for reliability, no nonsense and, well, lets face it, cheaper. The somewhat more prosaic 17 jewel 6217A played that role in the classic divers watch of that period, the Seiko 6217-8000 (62MAS) as well as in the first generation World Timers. It is somewhat ironic that 50 years later, the mid-level Seikomatics can be had for the price of a cheap day return to Kings Cross whereas a decent 62MAS could pay for a weekend for two in New York.
I’ve written about the 62MAS on two previous occasions here and here, in both cases featuring watches which were cosmetically challenged to the extent that they needed dial relumes. I like both a great deal but have kept my eye out for an example with as pristine a dial as possible, but as is my wont, as parsimoniously as possible. As it happened, I stumbled across such an example early this year and have been waiting for the opportunity to lick it into shape.

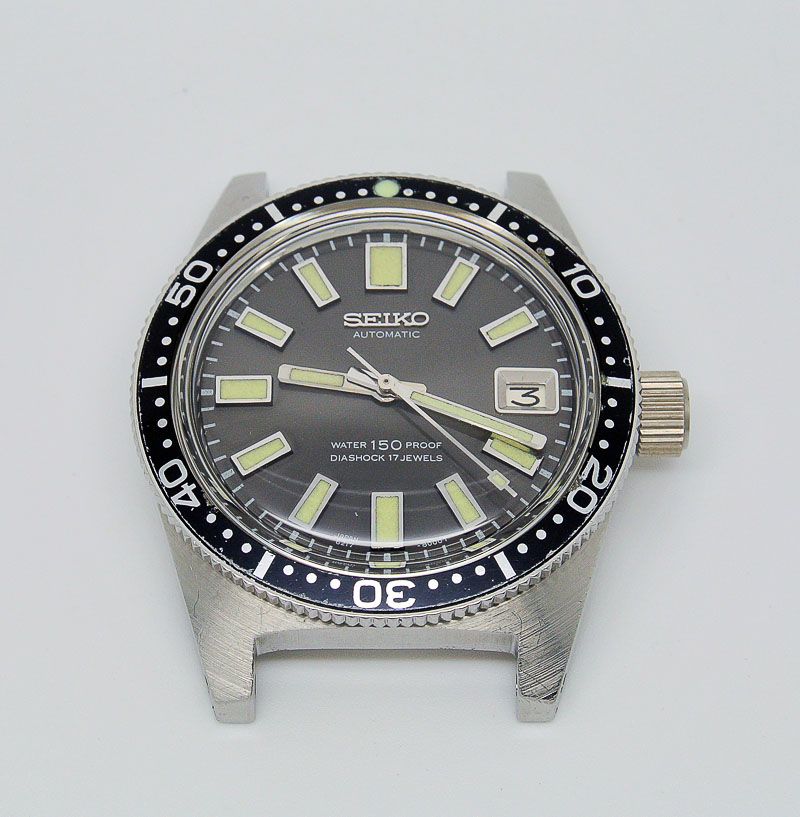

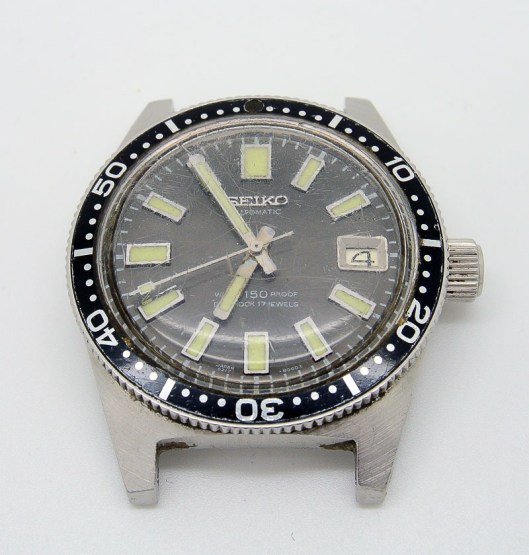

In the intervening period, I’ve also been accumulating a small assortment of tatty examples of higher-end Seikomatics, hopeful of rich pickings beneath their sorry exteriors. My cunning plan, half-formed at its genesis but taking shape over the past few months has been to construct a more refined engine in keeping with the beautiful face of this latest example of the 62MAS to cross my path, a 6217-8001 from May 1966. Here it is in the condition received

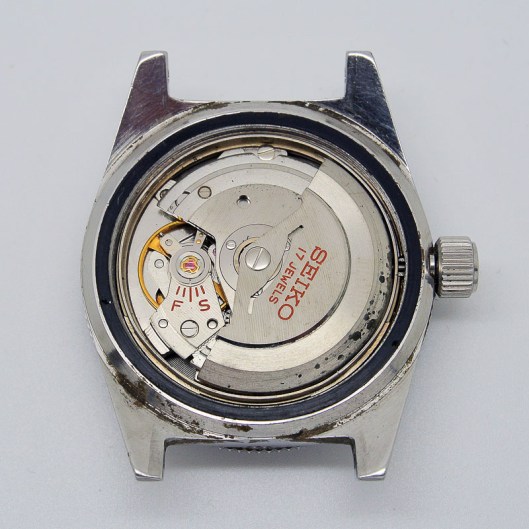

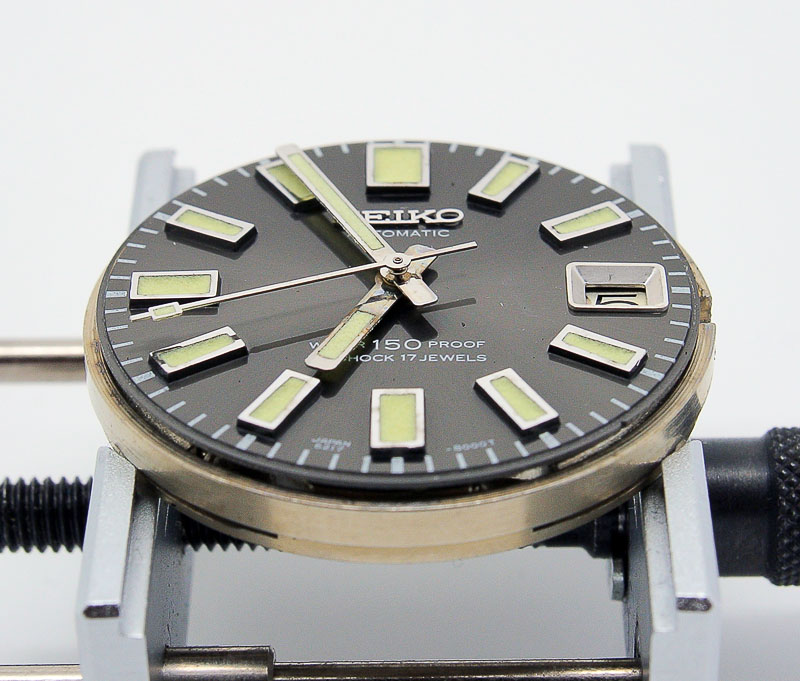

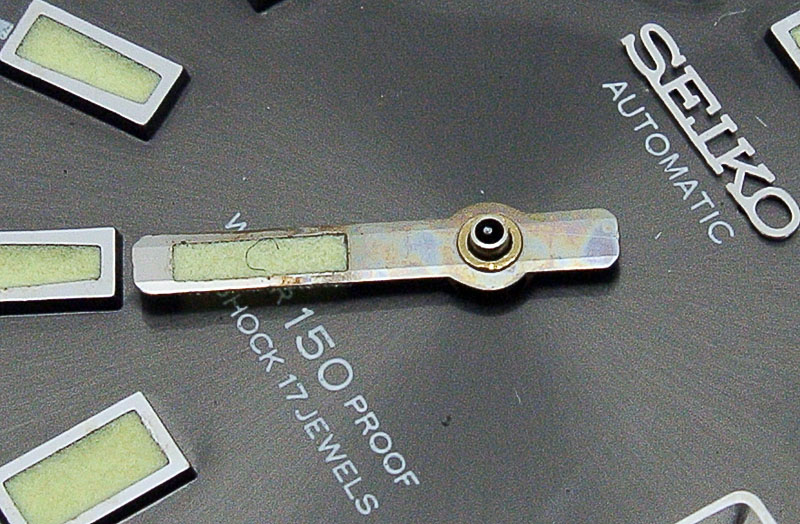

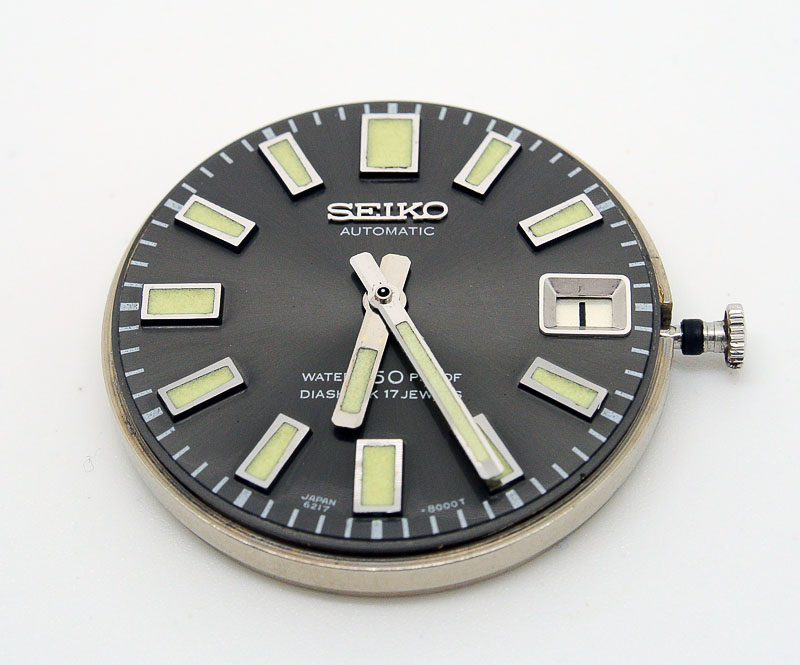

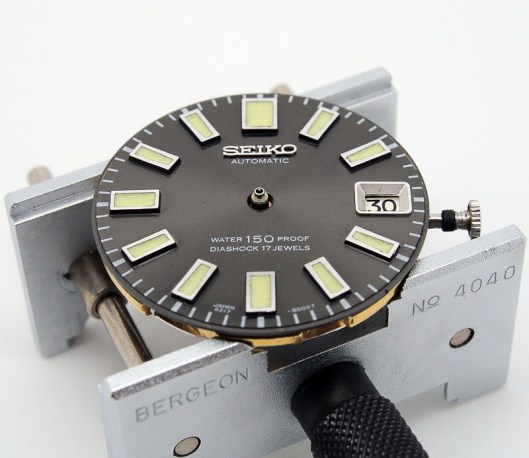

What is perhaps not necessarily evident from this head-on view is that this is certainly one of the most filth-encrusted watches I’ve purchased – so much so that the bezel was frozen solid, mired in years of solidified, well, let’s just call it gunk. However, of far greater importance is that lovely, peachy dial, its near-perfect period yellowy-green lume shining though that opaque, crazed acrylic crystal. The movement was running, but very poorly although it looked to be in good cosmetic condition.

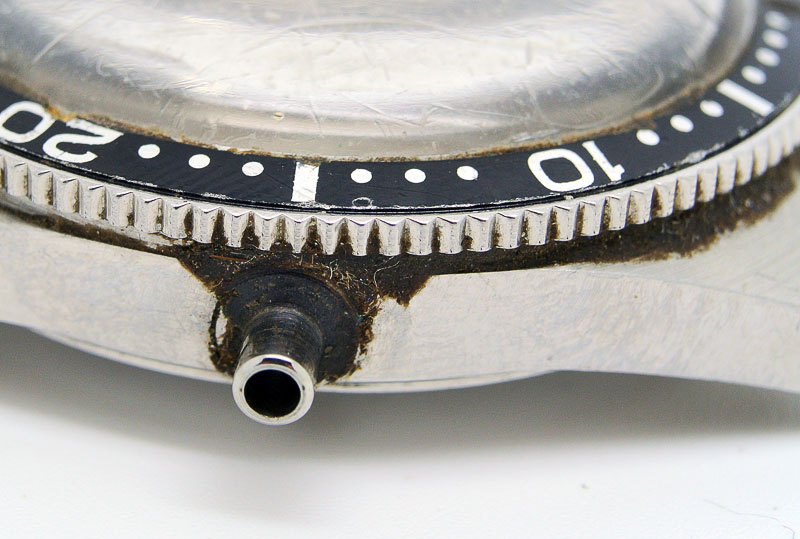

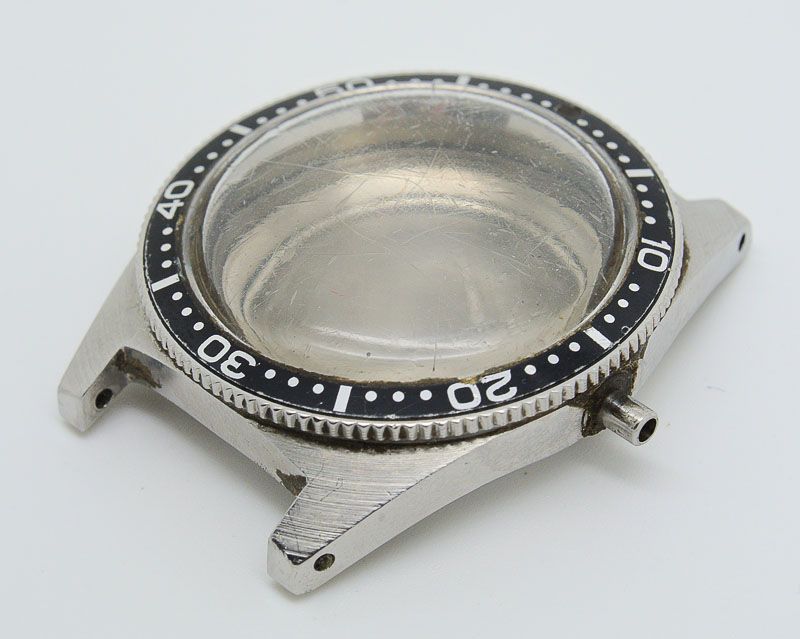

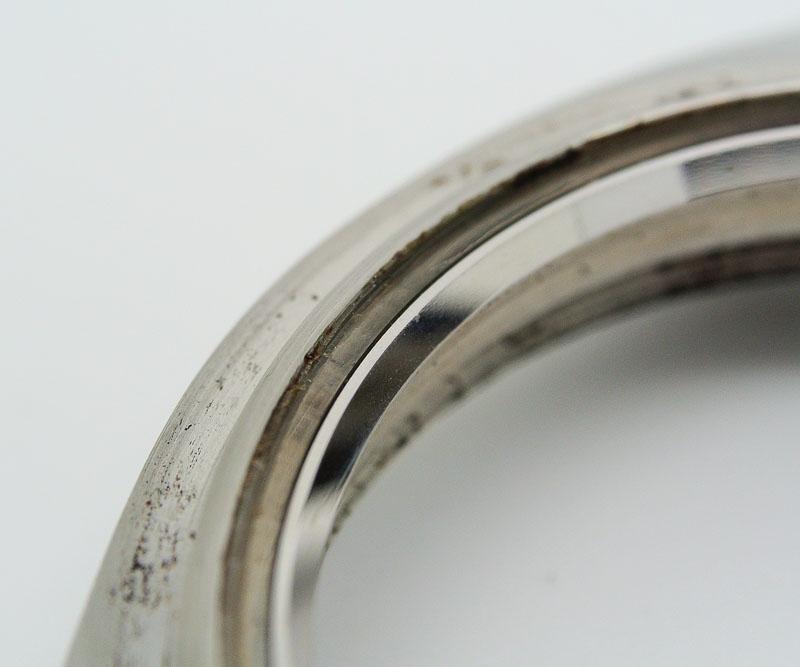

Those faint of heart or queasy of stomach might want to avert their gaze at this point. Here’s a view of all that lovely crud (taken from a respectful distance), gluing the bezel to just about everything in its immediate vicinity.

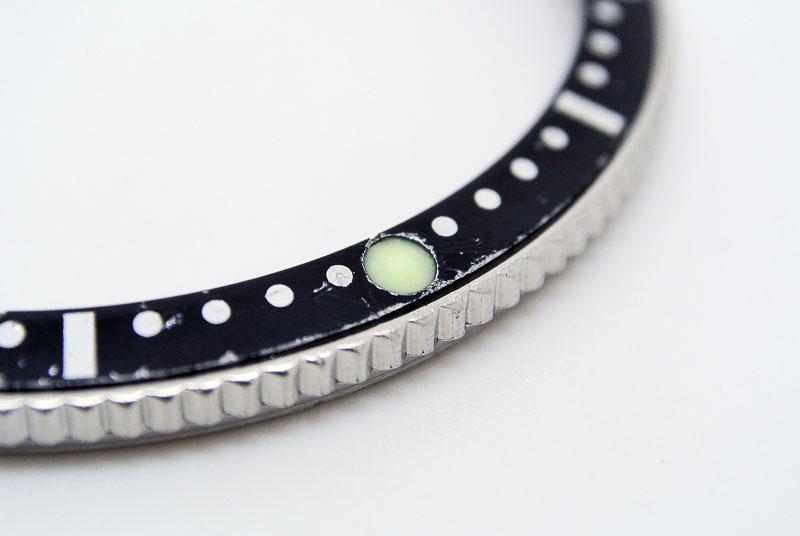

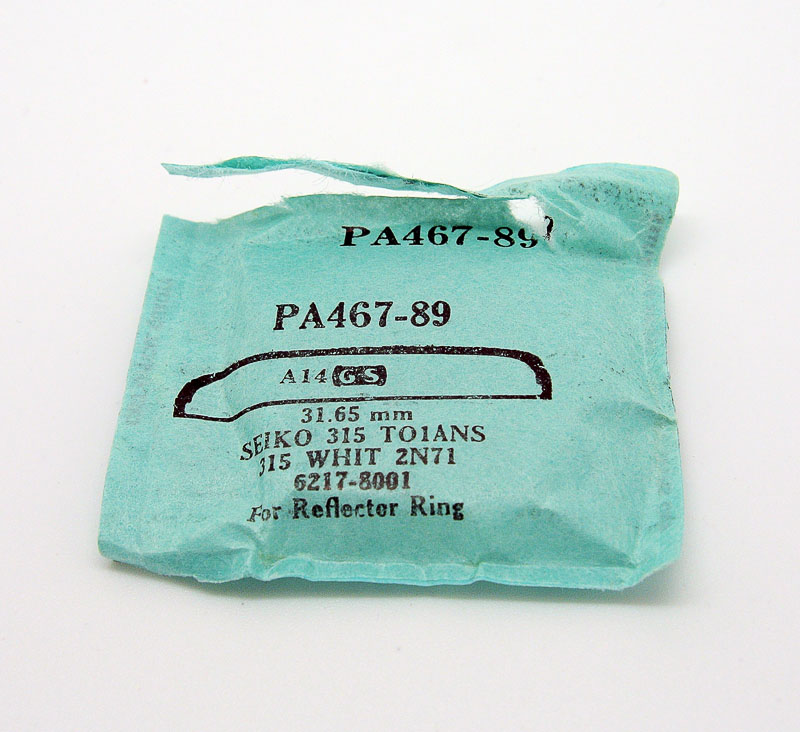

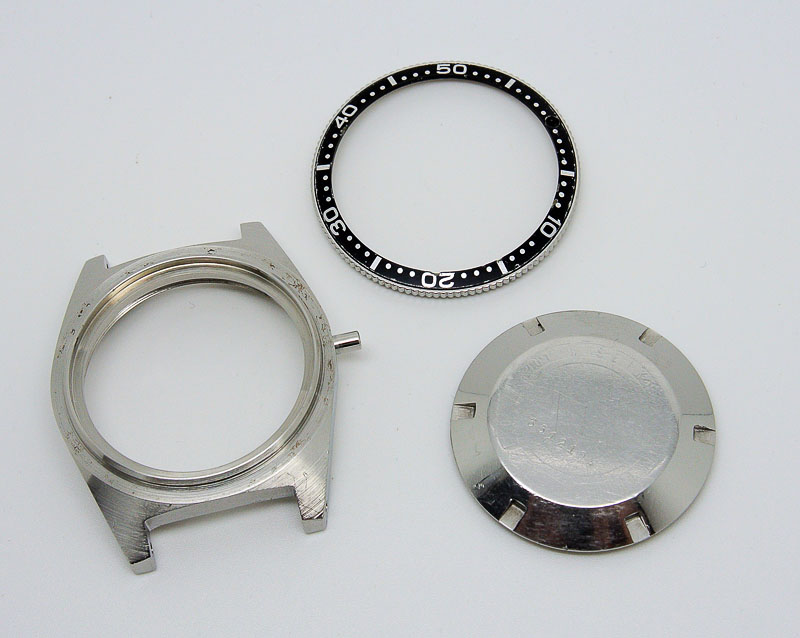

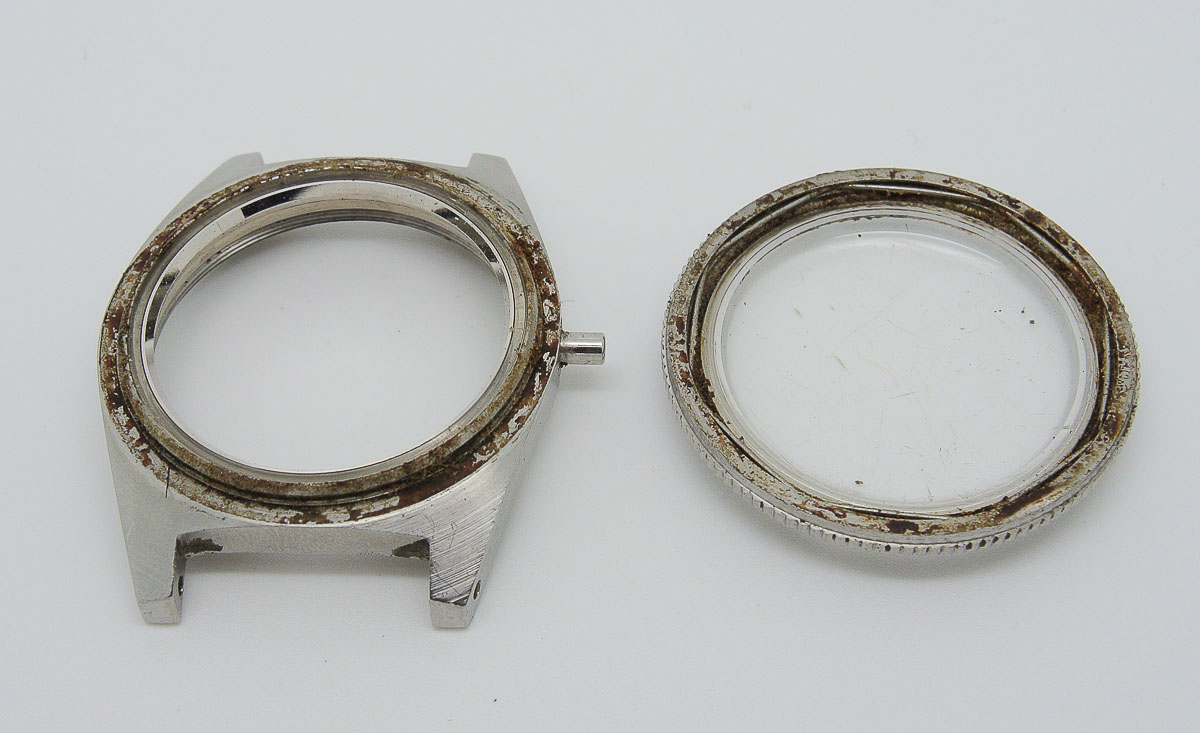

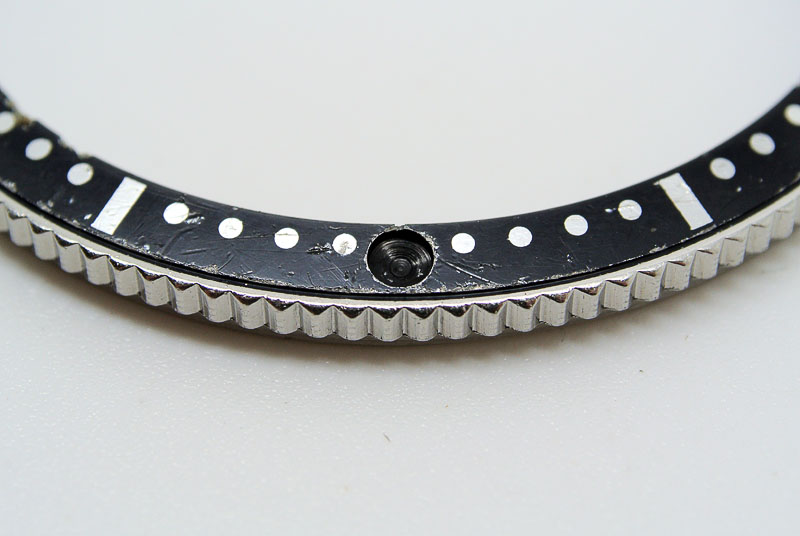

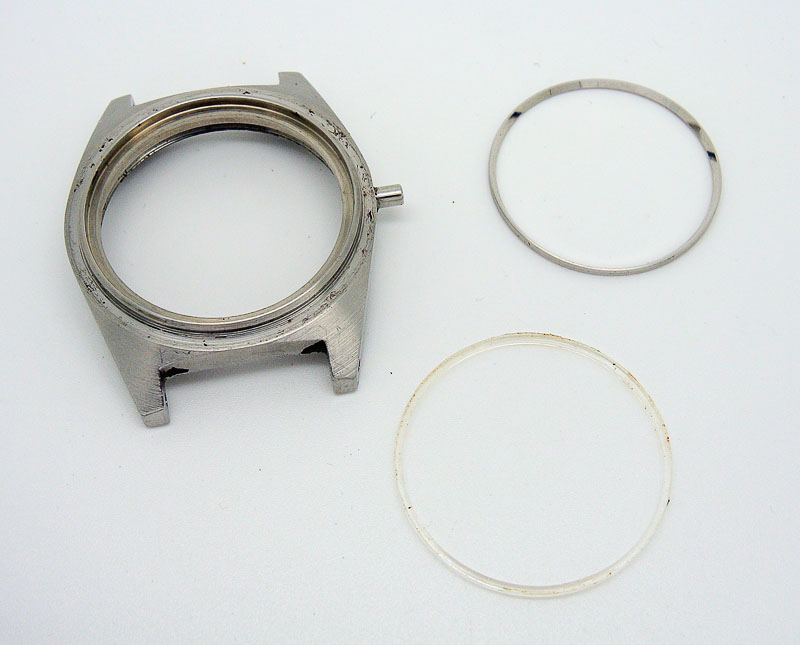

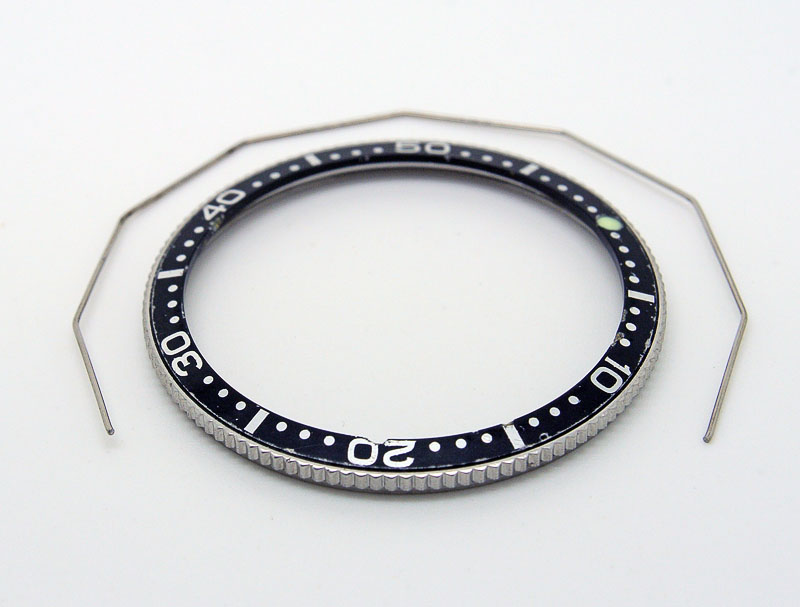

Now how to get that bezel off without damaging the insert? I ran the blade of a fine screwdriver around the gap between the inner edge of the insert and the outer edge of the crystal in an attempt to break the seal but in doing so I must have performed an inadvertent glazier’s coup for as I then levered the bezel free from the case, so too came the crystal top, still firmly adhered to the insert,
- a stop seconds (hacking) facility
- as many jeweled bearings as possible in the gear train
- fine regulation adjustment on the balance cock
Additionally, I wanted to fit a date only movement – not a day/date movement with the day complication removed. And finally, I wanted to achieve all of this without having to buy a chronometer spec Seikomatic, largely because of the high potential cost of doing so but also because I do not like the idea of cannibalising a high end watch for movement parts.

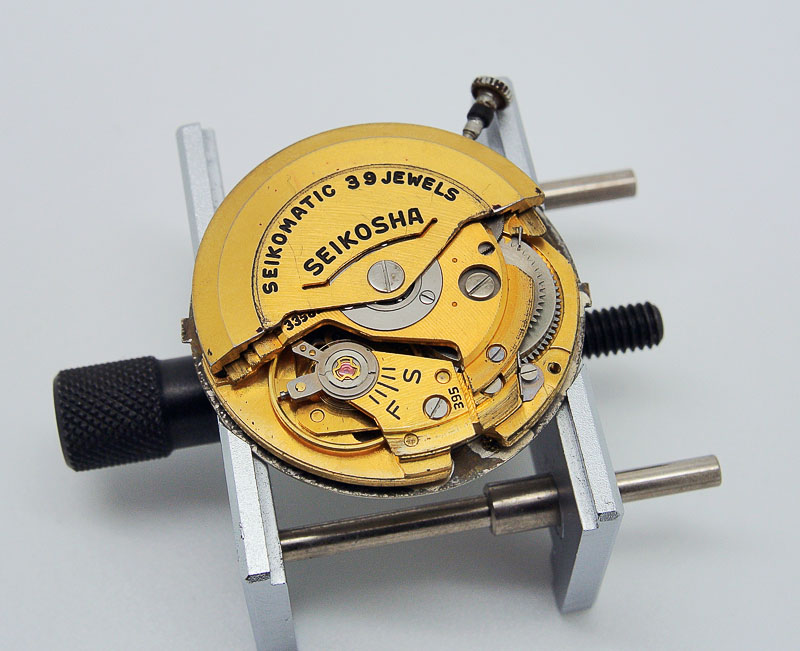

Where then do we begin? The higher grade date-only options from the 62 series movements include: the 394, which is an early 24 jewel incarnation of the 6205; the 395, a high grade 39 jewel version of the 394; the 24 jewel version of the 6205; the 35 jewel 6215, a chronometer spec movement, which as far as I can tell was only fitted to the 300m 6215-7000 divers watch of the period (and therefore out of the question on cost grounds alone); and the 6245, another 35 jewel chronometer movement fitted to the gorgeous Grand Seiko 6245-9000, which, again, we exclude on both cost and ethical grounds. With hacking being a pre-requisite, we can additionally discard the 394 and 6205 which leaves the 395. Given its 39 jewel-count, this movement would appear to offer an embarrassment of riches and it just so happens I have one, fairly recently acquired from the land of the rising sun.

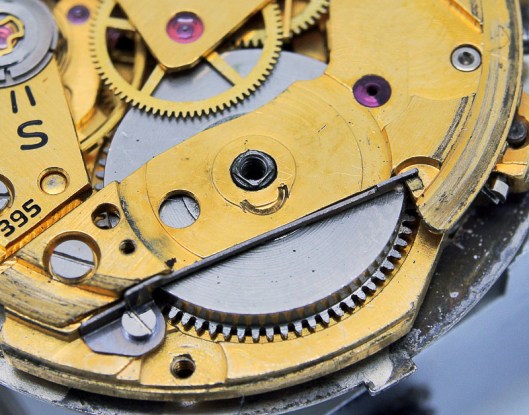

You will notice however from the photo above that the 395 does not offer a fine adjustment facility on the balance and furthermore, this particular example has been subject to some fine tuning to the train side barrel hole

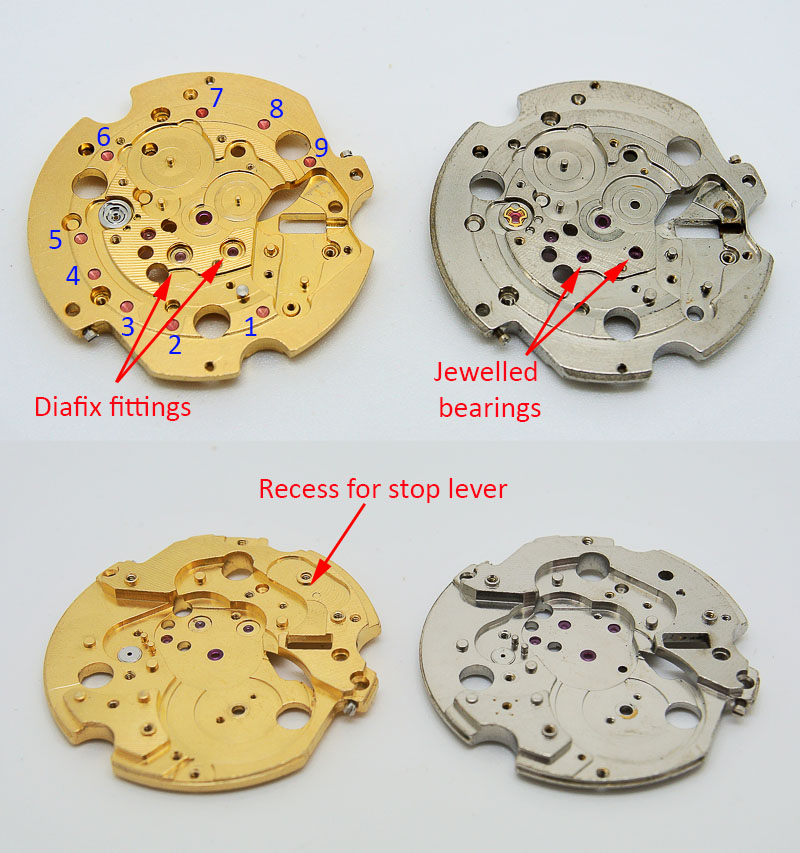

which, while it looks like this may well be standard watchmakers’ practice, taints this particular train bridge for me. Nevertheless, this movement hacks and the main plate is in excellent condition and so it will therefore form the basis of the new movement build. I don’t propose to document the strip down because, by the time we get to the end of this build, we will have raided four different movements for parts, but let’s begin by comparing the 395 and 6217 main plates to see what added value we are getting from the former:

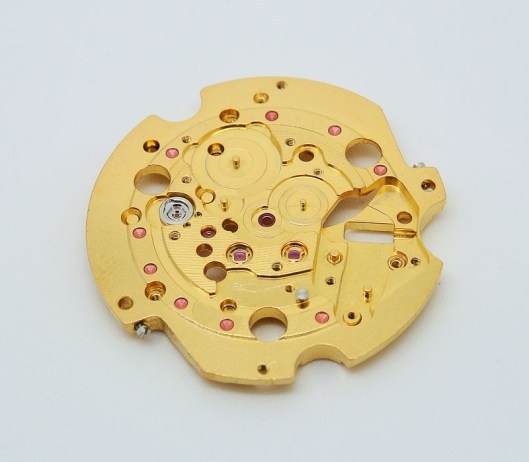

Where the 6217 (above, right) does have jeweled bearings for the centre wheel, third wheel, escape wheel and, of course, the pallet arbor, the 395 boasts an extra 2 jewels by virtue of the Diafix fittings for the third wheel and escape wheel. These extra jewels serve to protect the lubrication of the bearings in the medium to long term rather than necessarily acting to upgrade the short term performance of the movement. In addition, the 395 has no fewer than NINE jewels distributed around the surface supporting the date wheel (see top left, above), there to ease its passage presumably and not, of course, to assist in the marketing of what was at the time one of the higher-end Seiko dress watches [smirk]. The most significant functional difference though is the recess and tapped screw hole to accommodate the hacking lever. With the foundations established, let’s begin, first with a quick appraisal of the now cleaned main plate, with diafix jewels refitted

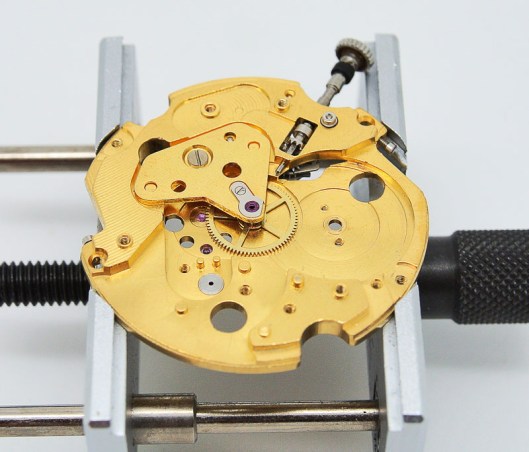

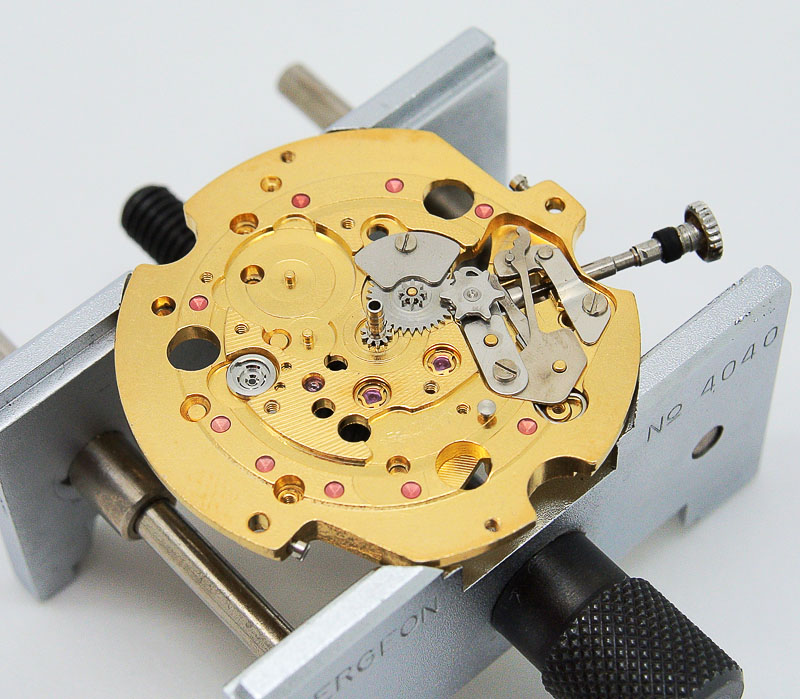

The next step is to fit a brand new centre wheel supported by the centre wheel bridge taken from the 395, adding a further additional jewel to the jewel count in the bearing plate which supports the fourth wheel pinion,

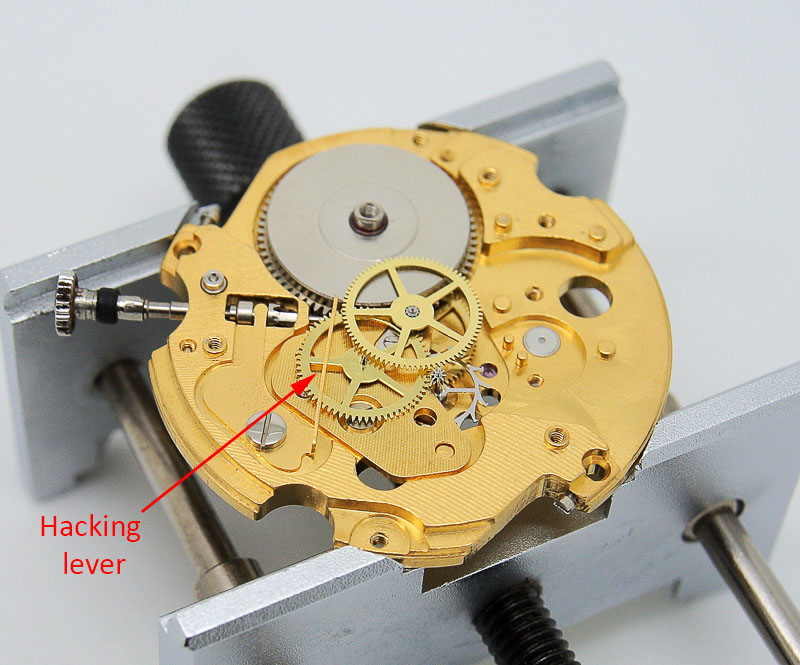

In practice, the keyless works comes together first, then the centre wheel and bridge, followed by the (new) cannon pinion and original hour wheel from the 395 (in position in the photo above). The hour wheel from the 6217 would not have fitted for reasons detailed in one of the earlier 62mas posts here. Now we have another minor hurdle to overcome. Having discarded the train wheel bridge from the 395 because of the horseshoe impression delivered by a watch maker to reduce barrel arbor side shake, I needed a replacement. The difficulty in doing so derives from the fact that the hacking facility on the mainplate requires a matching recess in the underside of the train wheel bridge to accommodate the hacking lever. No such recess exists in the train wheel bridges from the higher jewel count 6205 and 6206’s and so instead I turned to a day/date 6218B for a donation of its flawless train wheel bridge.

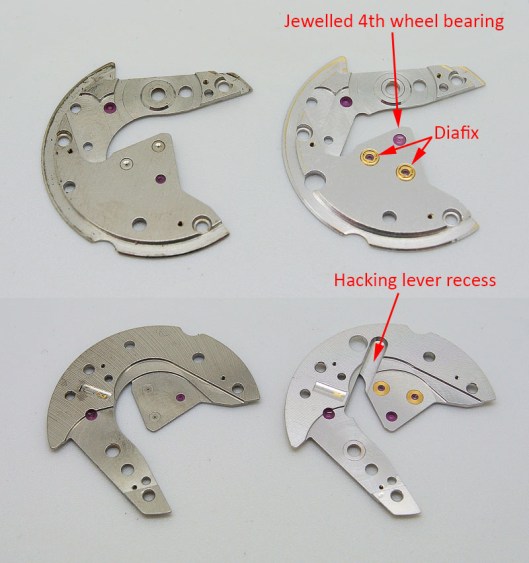

We can see below how the 6218 bridge on the right compares with that from the 6217, left. The obvious difference is the net 4 increase in jewel count courtesy of the Diafix settings serving the third wheel and escape wheel plus the jeweled bearing for the fourth wheel. The 6217 makes do with just a single jewel serving the escape wheel. From a functional perspective, the most importance feature is the groove machined in the underside to accommodate the hacking lever.

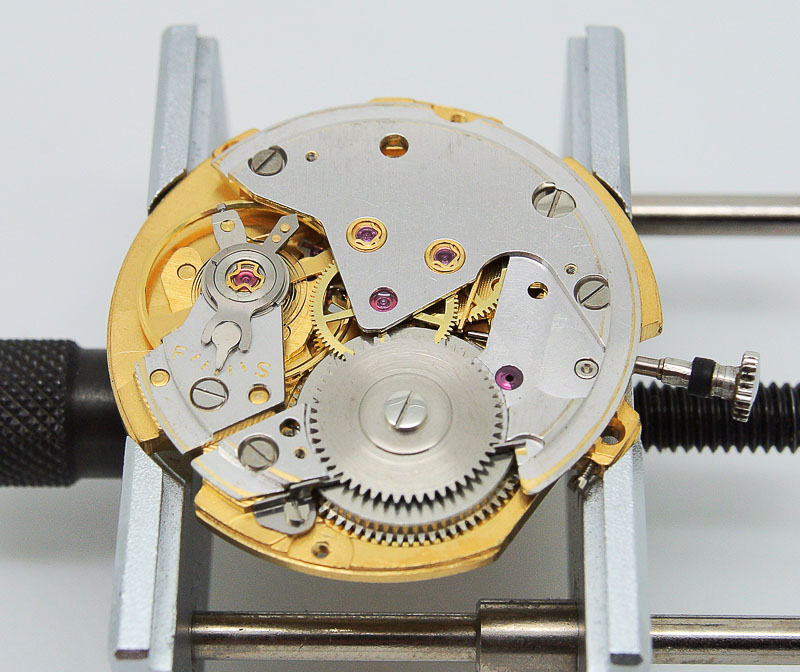

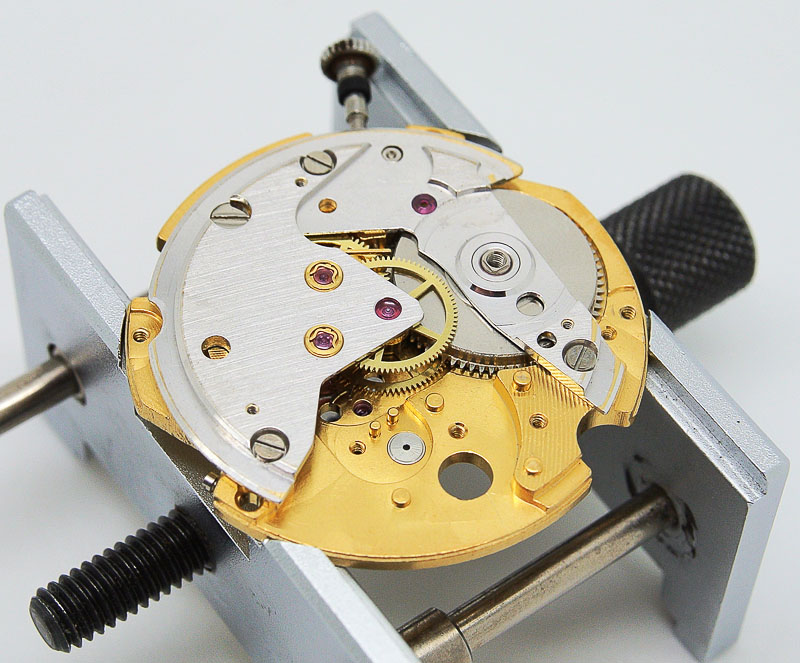

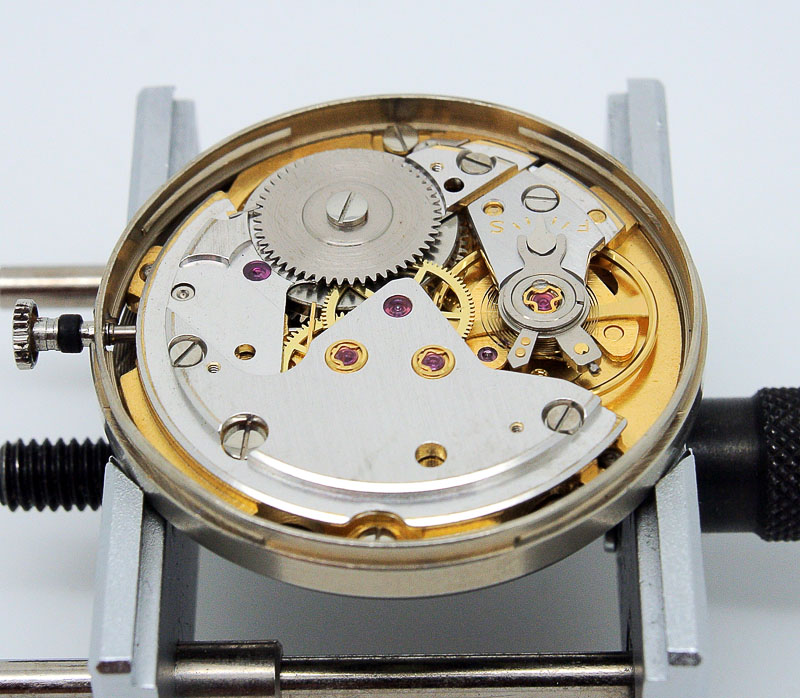

At this point, we check that all of the train wheels run smoothly by applying a bit of torque from the barrel. Lubricate the pallet jewels and then fit the pallet, pallet bridge and then, in place of the balance from either the original 6217 or the 395, I’ve opted for the balance from the 6218 which comes with a fine adjuster to help tweak the regulation with just a little bit more precision.

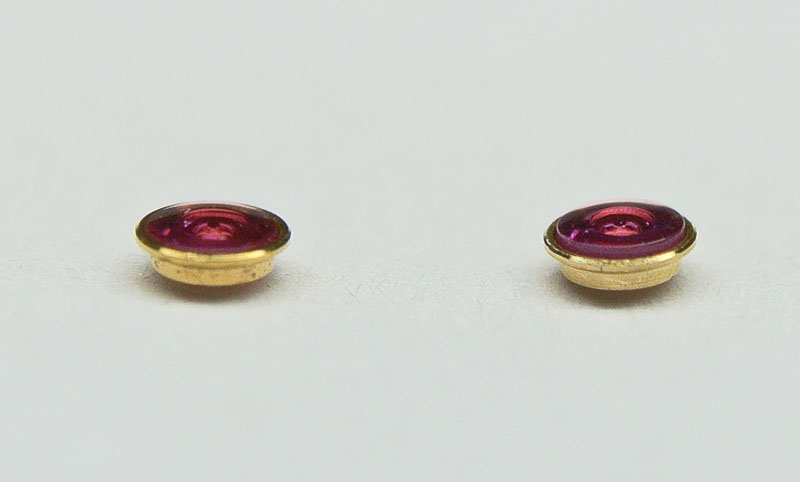

It is worth pausing to observe that the Diashock cap jewel in the 6218 balance is taller than that used in the 6217 because of the extra height of the Diashock setting required by the fine-setting lever on the top of the balance.

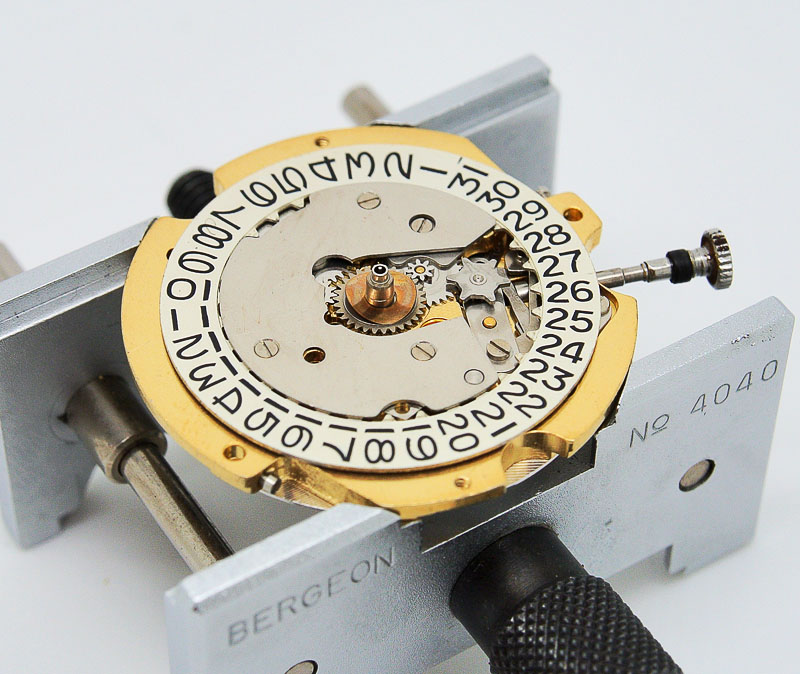

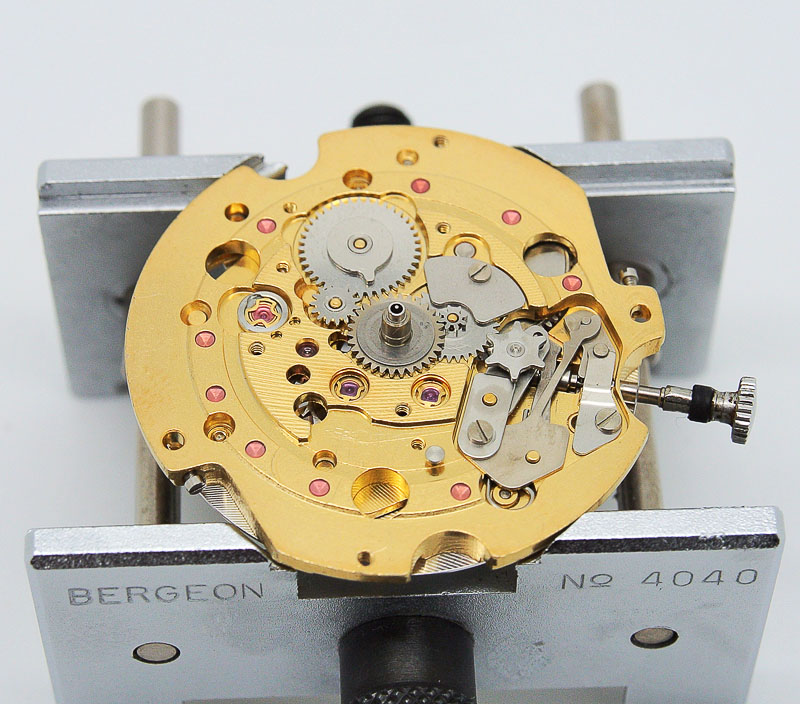

Returning to the calendar side, we can refit the remaining calendar parts, most of which from the 395 with the exception of the hour wheel and washer and the calendar plate, all of which from the 6217.
The jewel count stands at 33. The main plate accounts for 17 (9 under the date wheel, 1 for the centre wheel, 4 Diafix jewels, 1 for the pallet and 2 in the Diashock setting); the centre wheel bridge accounts for 2; the pallet fork accounts for 2 and its cock for 1; balance accounts for 3 (impulse jewel plus the Diashock setting); the train wheel bridge has 6 (4 Diafix jewels, 1 for the fourth wheel and 1 for the lower pivot of the transmission wheel) and the autowinder 2.

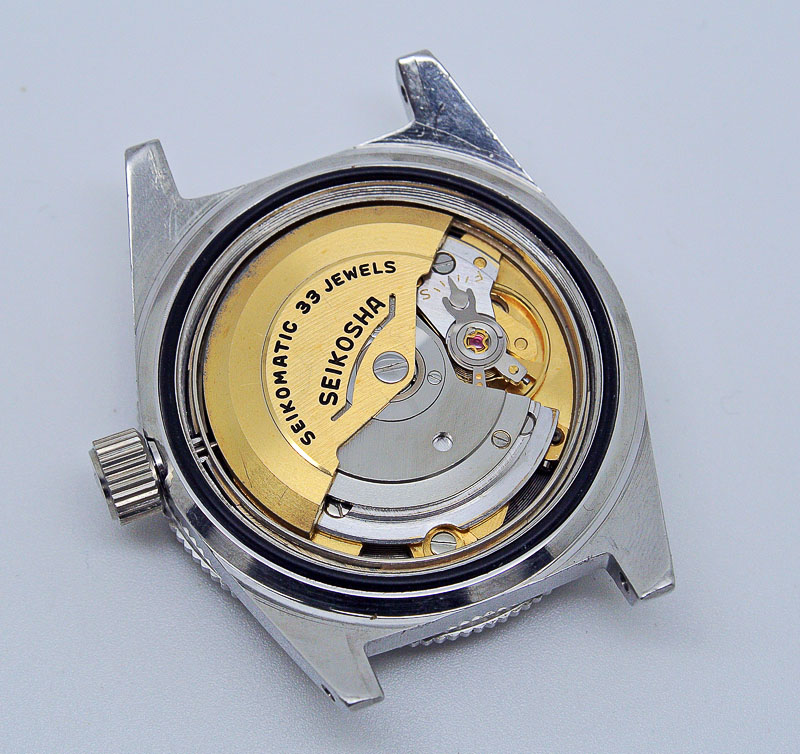

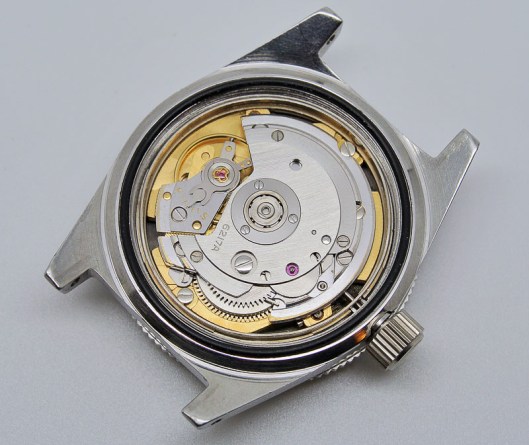

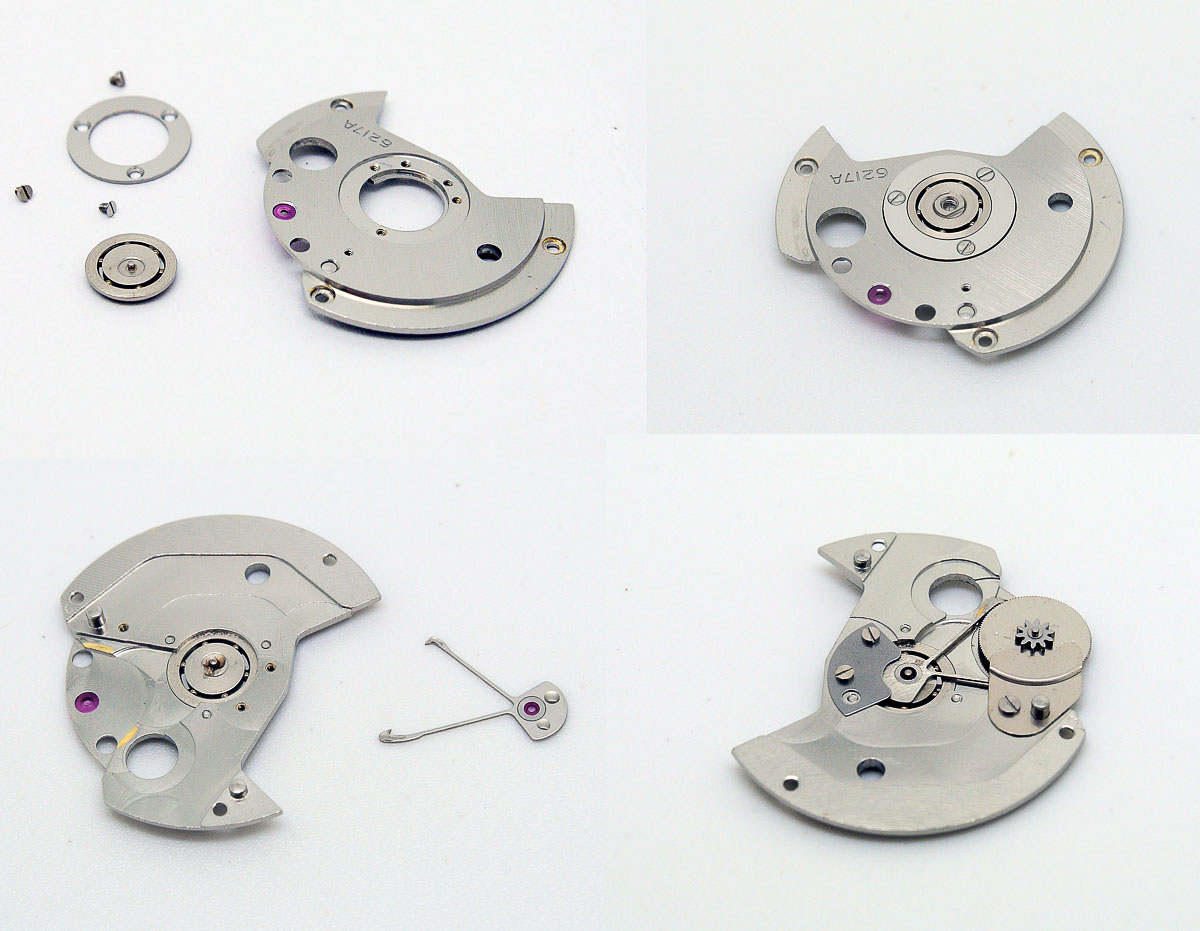

As far as I can tell the jeweling of what we’ve ended up with is the same as the 395 which claims 39 jewels. By my reckoning 17+2+2+1+3+6+2=33 and 33≠39. So where are the additional 6 jewels claimed by the 395? After a fair bit of detective work I think I’ve established that 6 jewels allegedly sit within the bearings of the autowinder. It is not at all clear whether this claim implies that the bearings themselves are ruby or that there is some additional jeweling within ball-bearing housing. Either way, even if they were present when my 395 emerged from the factory, I cannot be sure that the bearing has not been replaced at service in the past and in any case, I opted to use the automatic framework from the original 6217A. This means that a jewel count of 33 in this application is indisputable (not withstanding the slightly questionable value of 9 of them!). It seems fitting therefore to cap this latest endeavor with a suitable rotor:

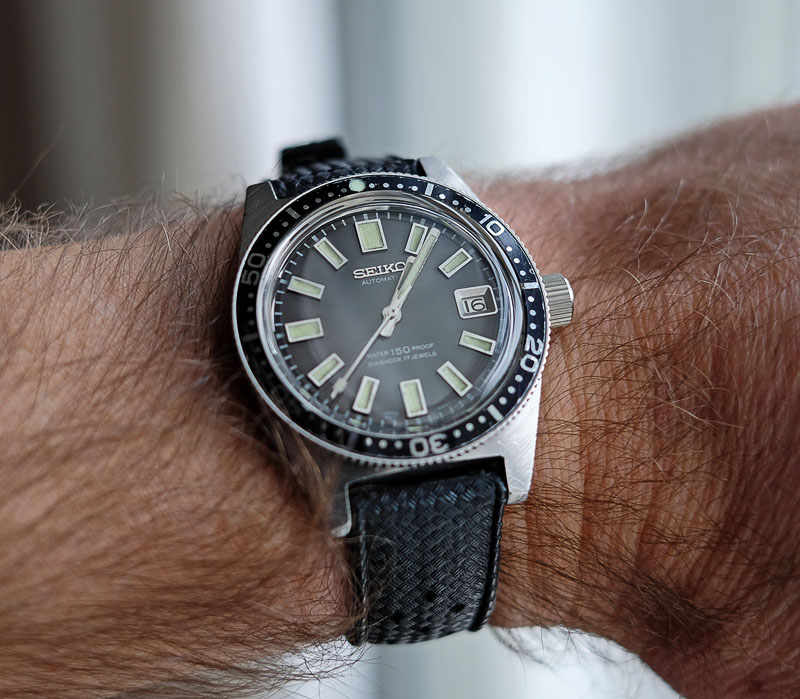

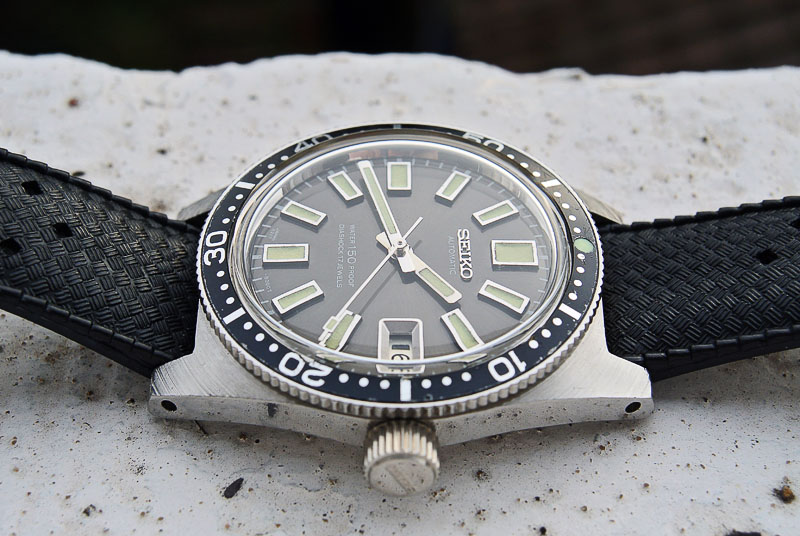

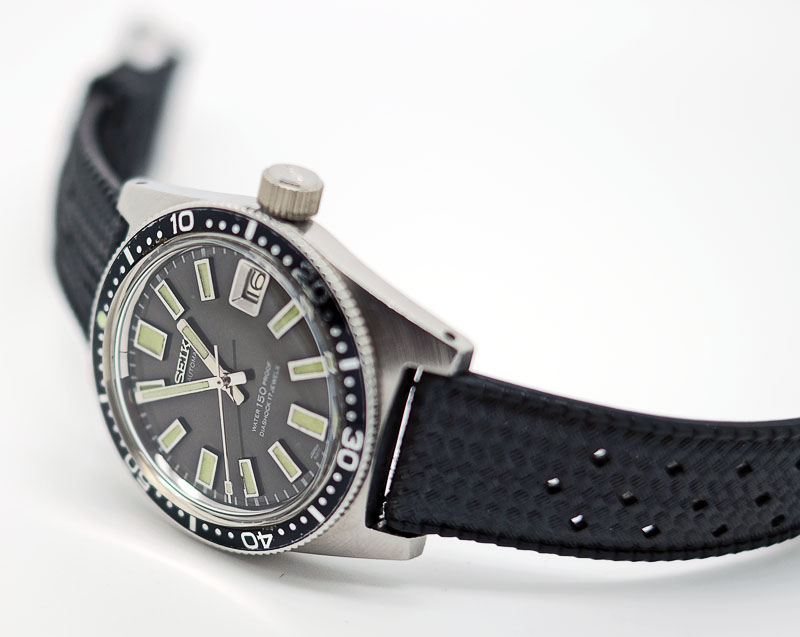

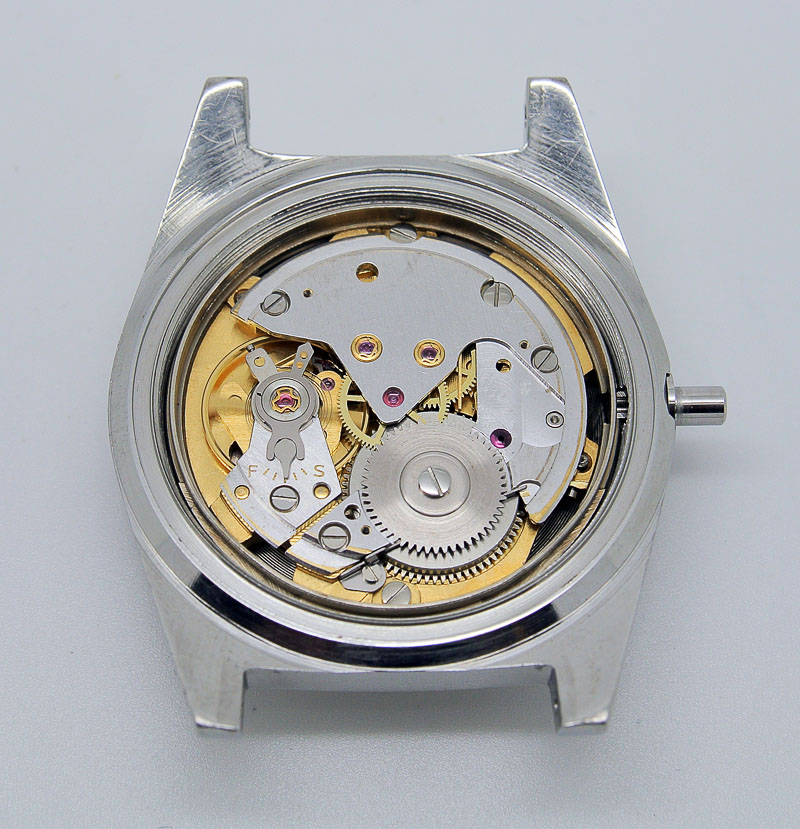

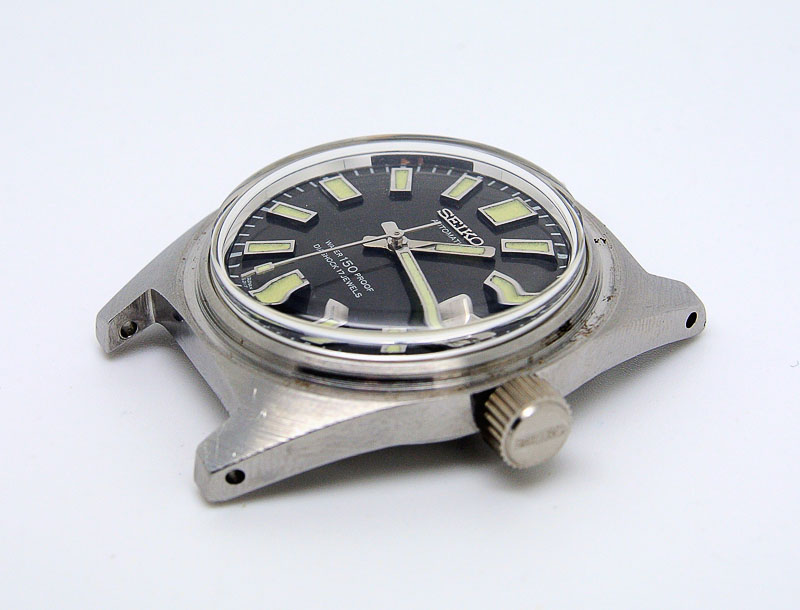

I am not entirely convinced that this choice of rotor presents us with the best aesthetic option but if we want to trumpet the presence of 33 jewels, then it is this or nothing. With a fresh case back gasket in place, the movement regulated and showing amplitude of 275 degrees at full wind, I am happy to pronounce this one finished.
